Products

Reliable • Innovative • Proven

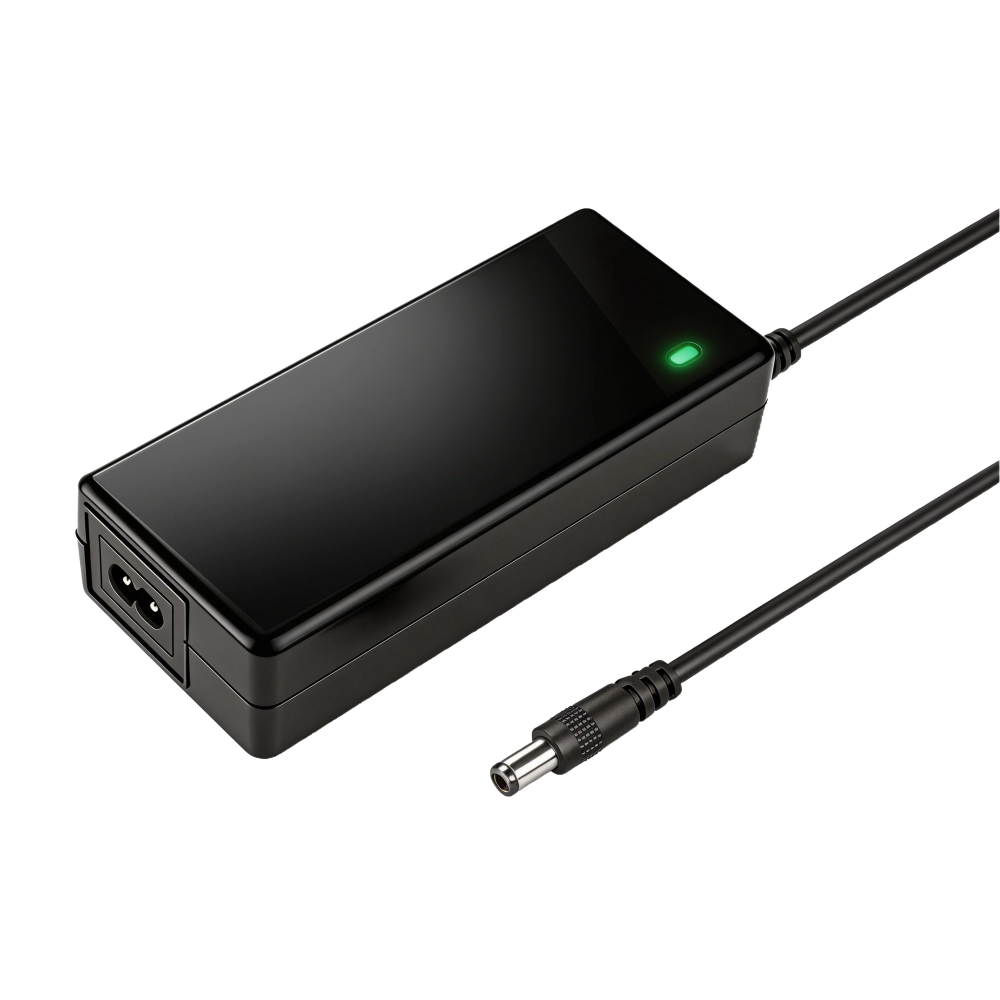

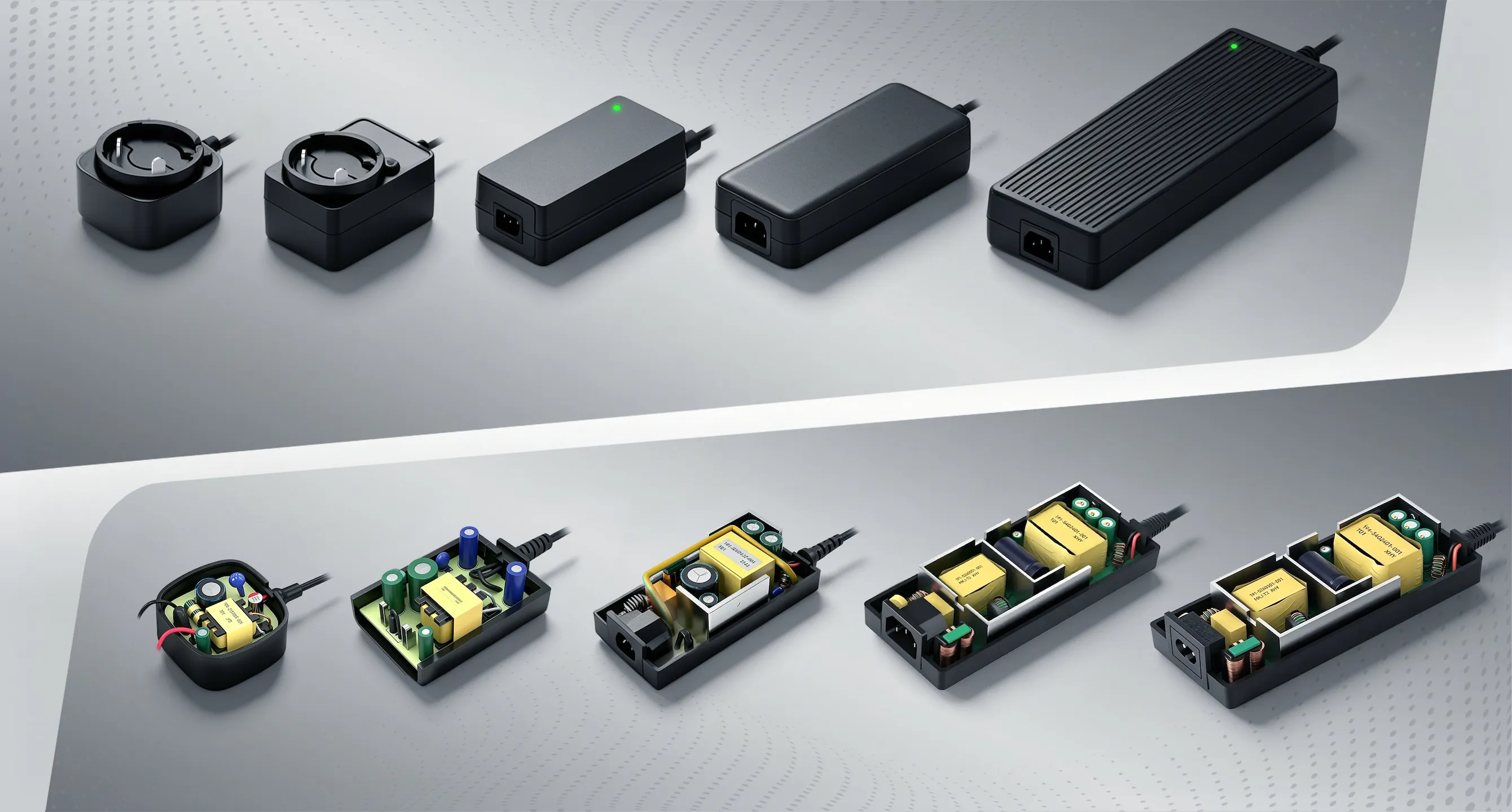

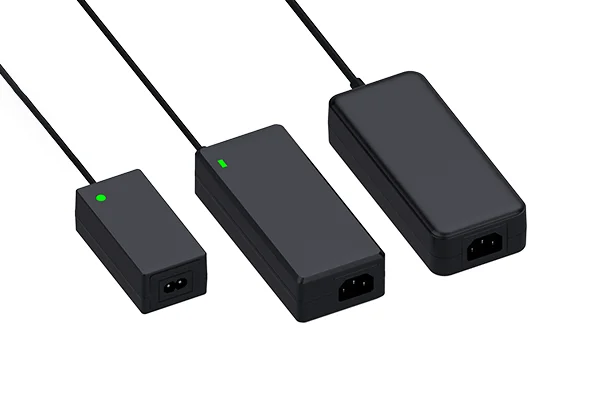

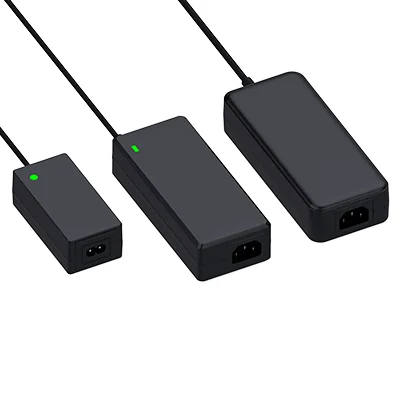

Desktop Type Power Adapters

Tailored power supply design delivers versatile power supply solutions, our desktop units belong to stable AC-DC power supplies with optional multi output power supply layouts for diverse stationary devices.

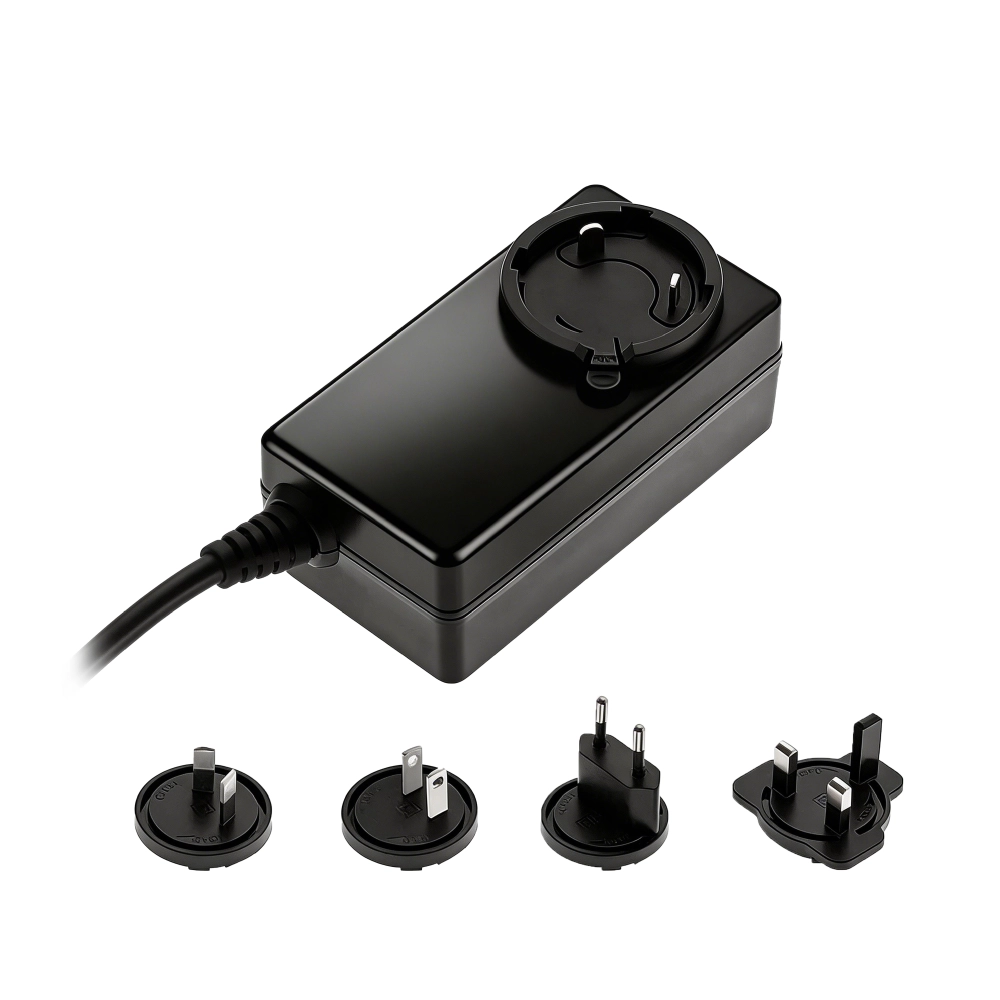

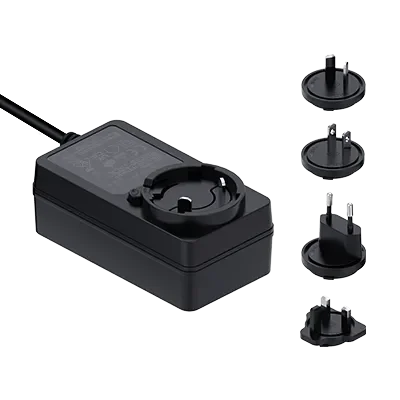

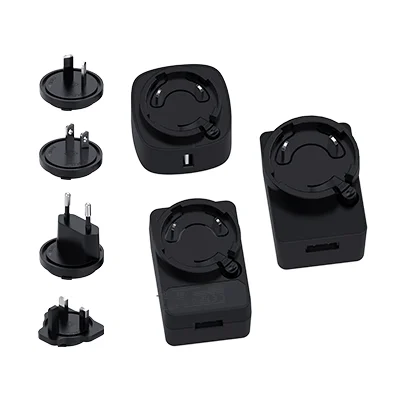

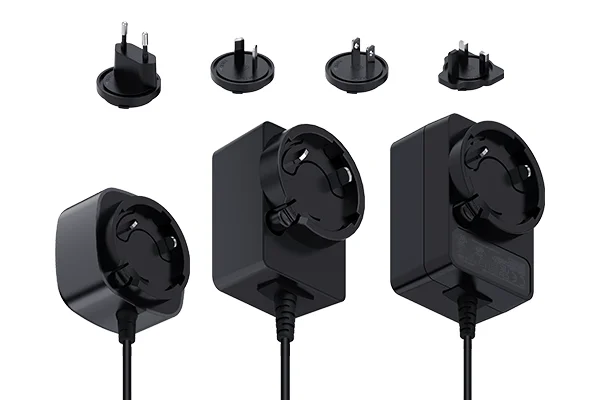

Interchangeable Plug Power Adapters

As reputable power supply manufacturers, we optimize DC-DC converters inside these interchangeable-plug adapters to adapt international voltage standards.

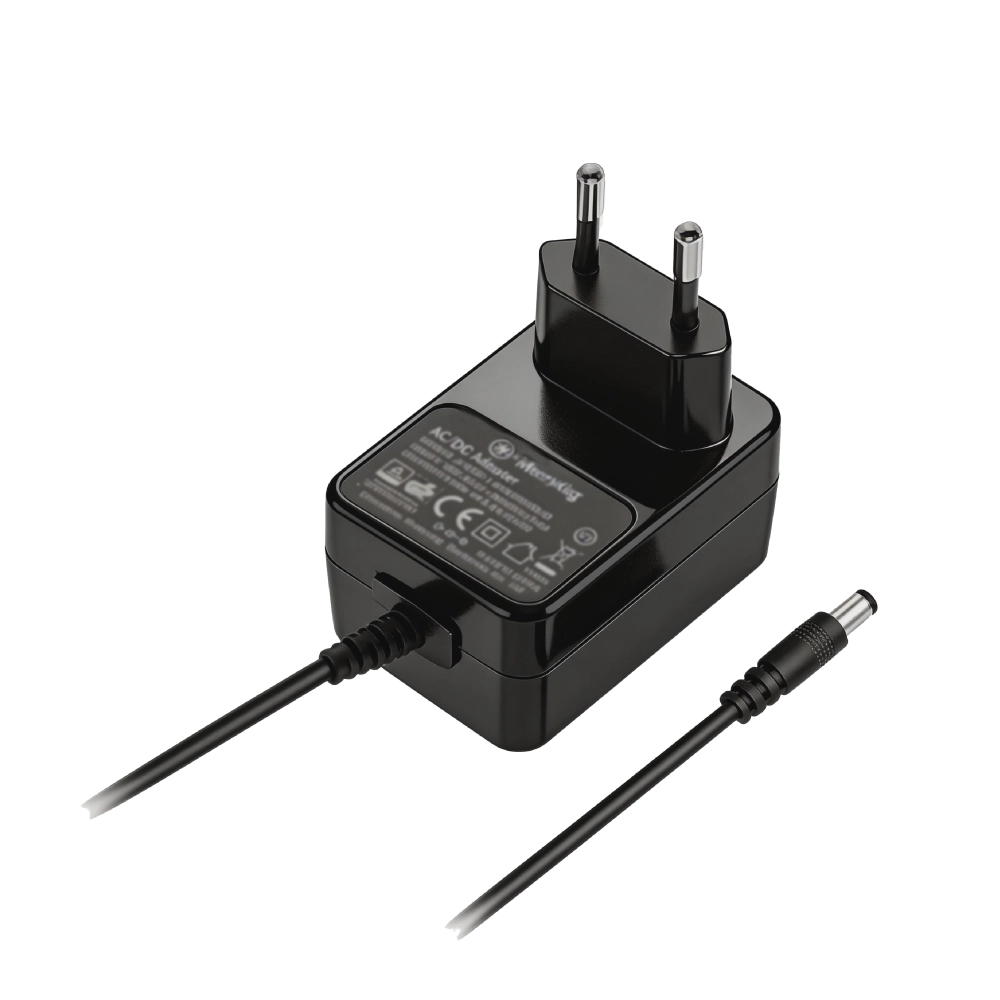

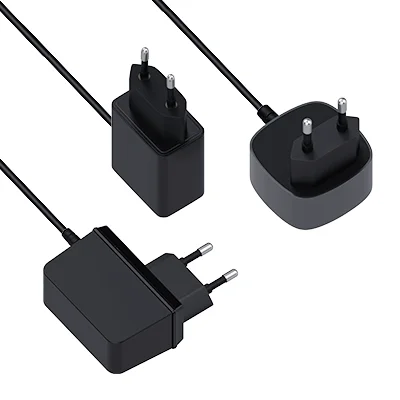

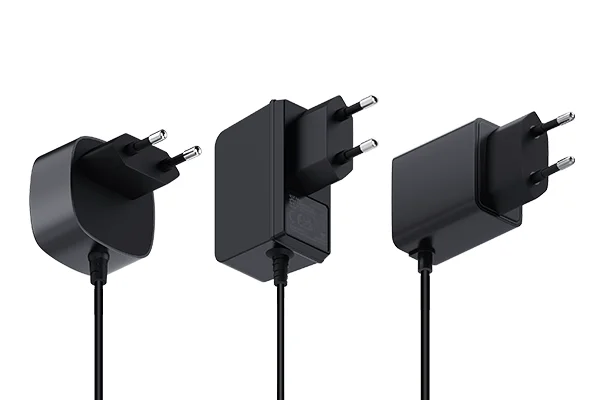

Wall-Mounted Adapters

Compact wall-mounted AC-DC power supplies support high voltage power supplies customization to meet harsh industrial power demands.

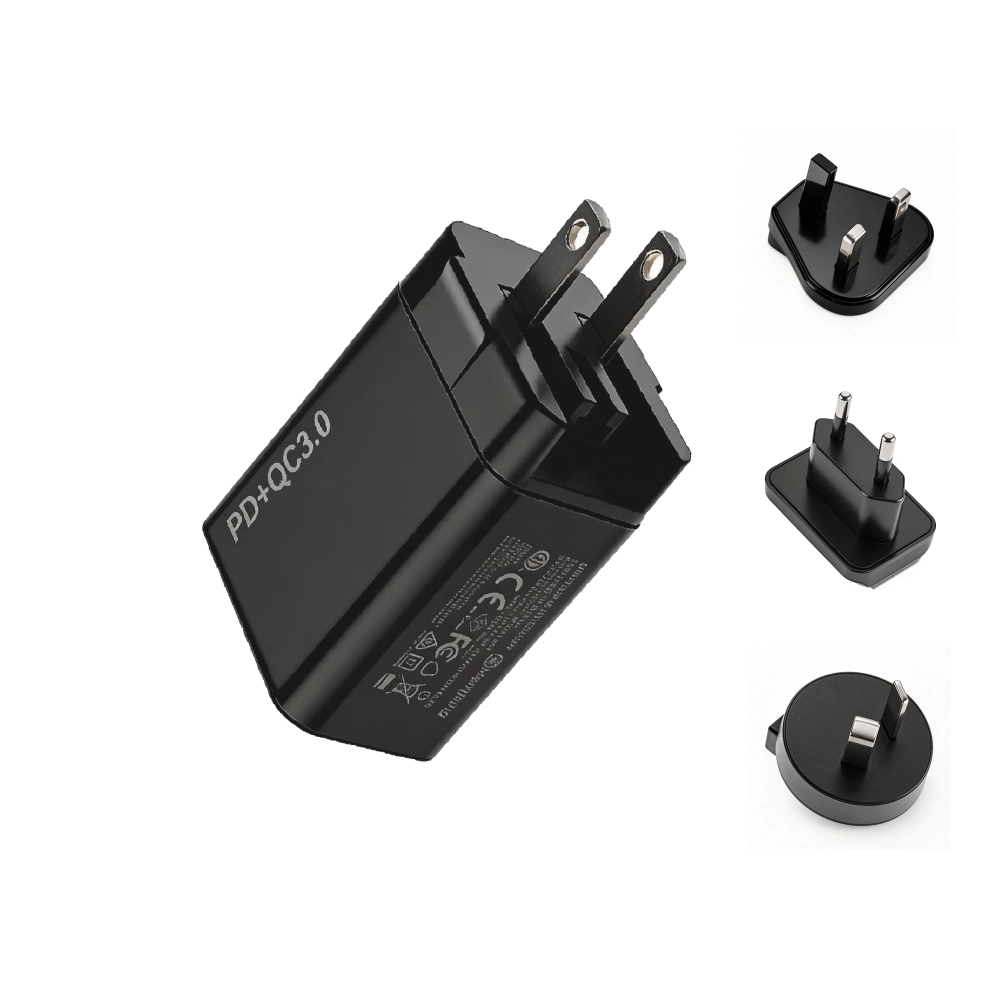

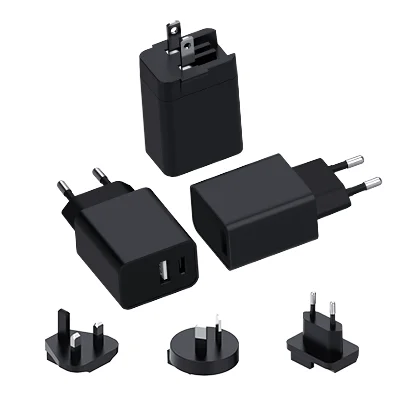

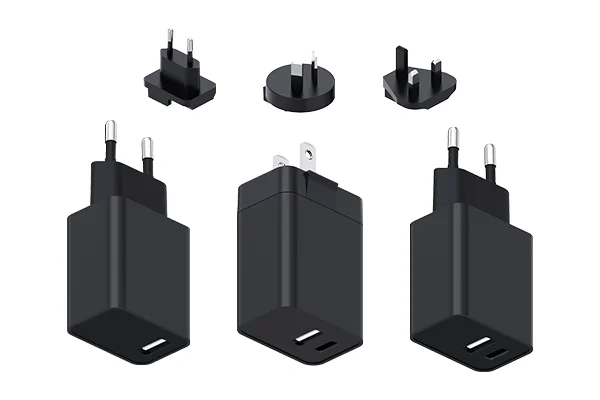

GaN PD Chargers (Interchangeable)

Our mature power supply design empowers compact GaN chargers, delivering flexible power supply solutions for consumer fast-charging scenarios.

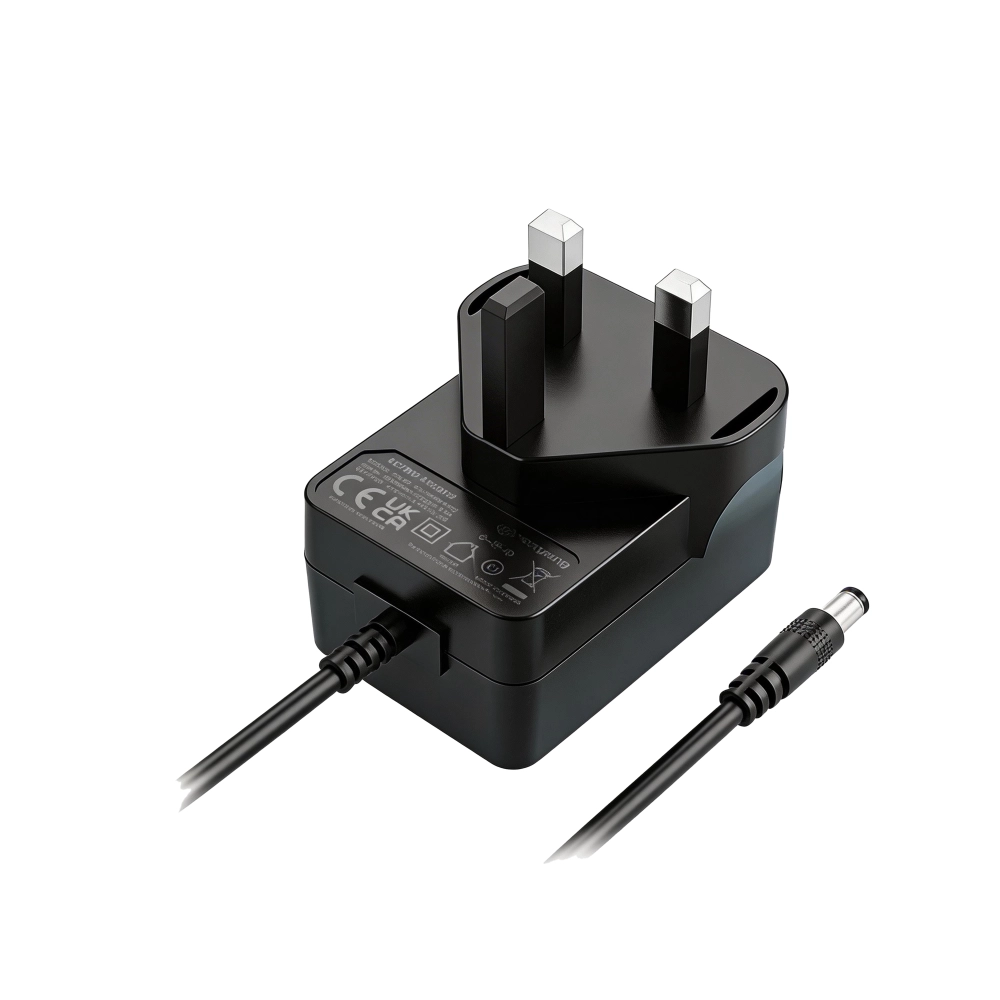

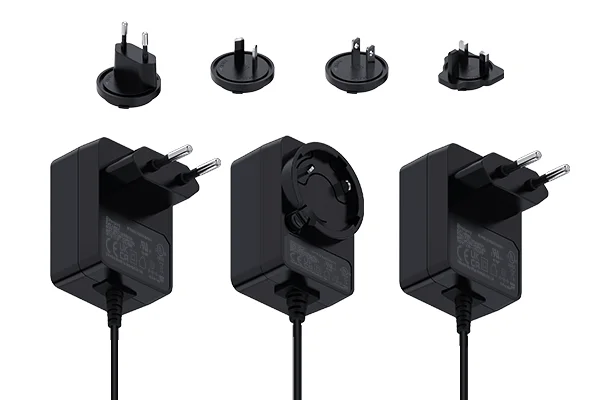

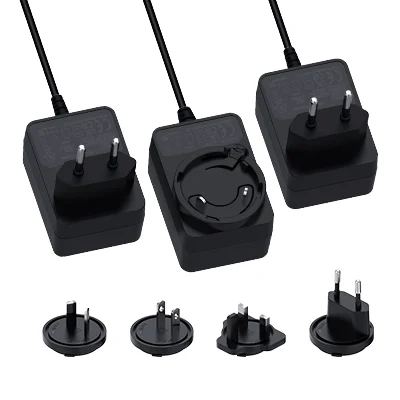

Medical Grade Power Adapters

Working as trusted medical power supply manufacturers as well as a professional medical power supplier, our adapters pass strict medical safety certifications.

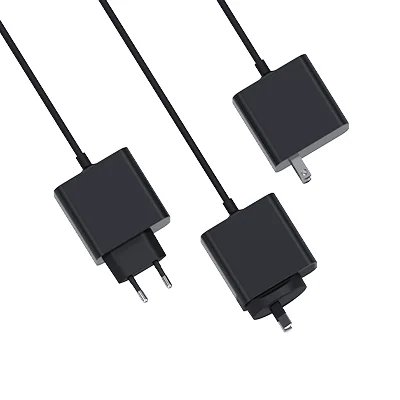

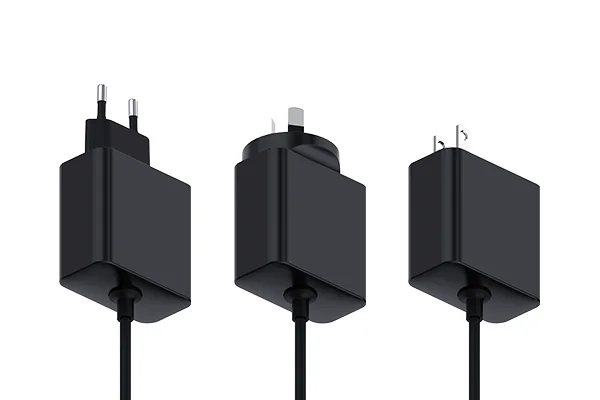

PD Power Adapters

Built with premium DC-DC converters, our PD adapters offer adjustable multi output power supply settings for electronics fast charging.

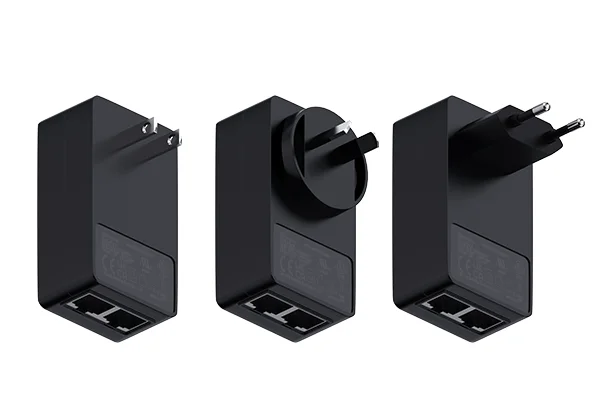

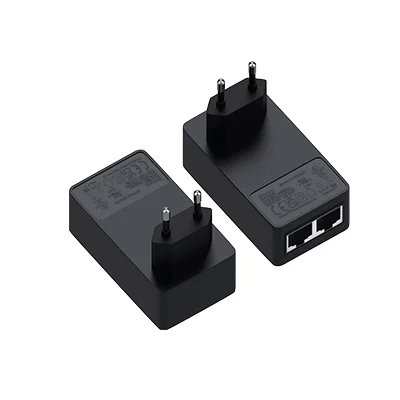

POE Power Adapters

Reliable high voltage power supplies from our factory serve POE networking gear, and we provide bespoke power supply design for network projects.

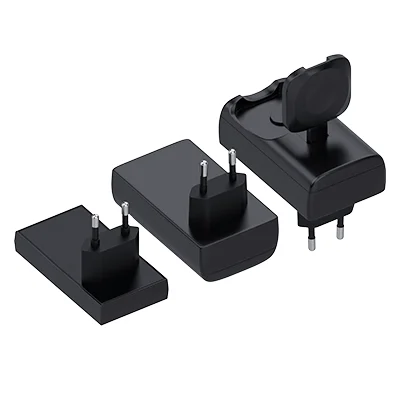

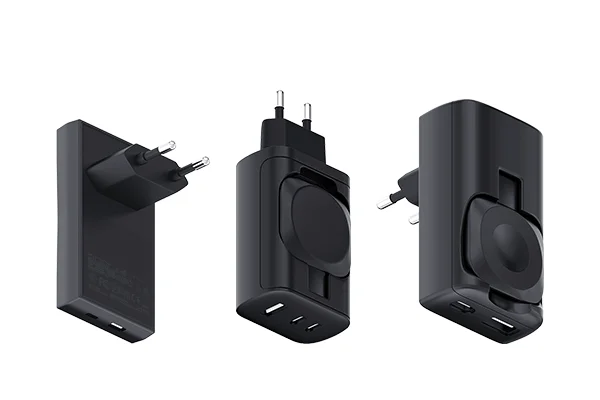

Ultra-thin GaN PD Chargers (Support Wireless Watch Charging)

Top-tier power supply manufacturers craft these slim chargers, offering all-round power supply solutions covering wearable gadget charging needs.

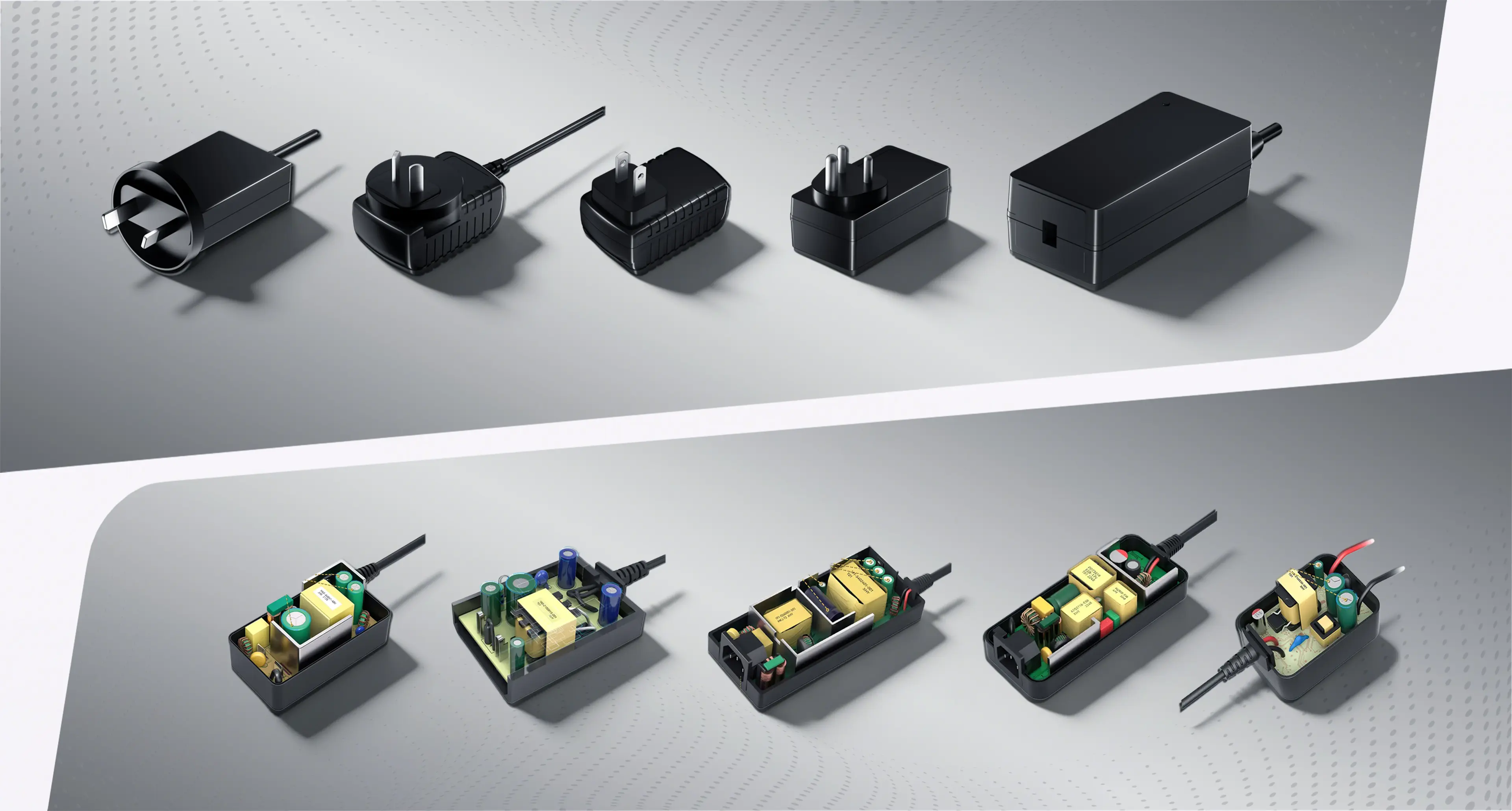

Our product range includes

AC/DC power adapters
Wall-mounted and desktop power adapters
Interchangeable plug adapters
USB chargers and GaN PD chargers
Medical-grade power adapters

Send an Inquiry Alibaba Store

Fully Customizable Desktop Series

36–600W

Output & Performance

Fixed constant-voltage DC output, matched to your device.

Voltage Accuracy test instrument illustration from the MKF catalog — Voltage Accuracy

Output Examples · 36–600W

Output example	Power
12V / 3A	36W
24V / 6.25A	150W
48V / 7.5A	360W
48V / 12.5A	600WDesign example

600W example calculated as 48V × 12.5A; engineering confirmation required.

Ripple & Noise test instrument illustration from the MKF catalog — Ripple & Noise

Configurable Design Targets

Power selection: 36–600W
Voltage accuracy: ±5% design target
Load range: 0–100% rated load target
No-load power: By power level & efficiency requirement
Ripple & noise: mV p-p target set for the output
Output overshoot: ≤10% design target
Line / load regulation: ±1% / ±5% design targets
Turn-on delay: ≤3000ms design target
Hold-up time: 10–20ms design target; by AC input & load

Start-up & Hold-up test instrument illustration from the MKF catalog — Start-up &
Hold-up

Series Voltage & Power

Series	Output range	Max. power
MKE	3–48V	36W
MKF	5–48V	65W
MKI	5–48V / 60V*	120W
MKJ	5–48V	150W
MKK	5–56V	200W
MKL	5–56V	250W
MKL2	12–60V	360W
MKM	12–60V	420W
MKN	Project-specific	600W

*MKI 60V: Class I CB scope. Output combinations and limits are model-specific; MKN voltage range requires confirmation.

AC Inlets & Regional Power Cords

Inlet, regional plug and cord length selected for the model and destination.

C8 adapter inlet — C8Class II · C7 cord end

C6 adapter inlet — C6Class I · C5 cord end

C14 adapter inlet — **C14**Class I · C13 cord end

US / JP

United States / Japan

Class IIClass I

EU / KR

Europe / South Korea

Class IIClass I

UK

United Kingdom

Class IIClass I

AU

Australia

Class IIClass I

CN

Mainland China

Class IIClass I

AR

Argentina

Class IIClass I

Class II: L + N · Class I: L + N + protective earth (PE). Regional images are examples; approved cord sets are matched to each market.

DC Cables & Connectors

Cable construction, length, gauge, materials and termination can be specified.

Round DC cable showing jacket and insulated conductors — Round Cable

Flat DC cable with two conductors — Flat Cable

DC cable length examples: 1.2 meters, 1.5 meters and 2 meters — 1.2m / 1.5m / 2.0m / Custom

Straight Barrel Plugs

5.5 × 2.1 / 5.5 × 2.5 / 4.75 × 1.7 / 4.0 × 1.7 / 3.5 × 1.35 / 2.35 × 0.7 / 6.3 × 3.0 / 6.5 × 1.4 mm

Right-angle Barrel Plugs

Various barrel sizes for side-exit cable routing.

Power mini-DIN

3-pin / 4-pin; overmolded or assembled locking versions.

Locking & Threaded Plugs

5.5 × 2.1 / 5.5 × 2.5 mm; locking and threaded versions.

Interchangeable DC Tips

2-pin / 3-pin connector options.

Stripped & Tinned Ends

For internal device wiring or terminal connections.

Additional DIN options: 3 / 4 / 5 / 6 / 7 / 8-pin. Connector sizes, cable gauge and material options depend on the selected model and current rating.

Materials & Components

Material, brand and series options from the MKF customization reference.

MKF adapter internal construction — MKF Internal Construction

MKF insulated transformer — Transformer & Insulation

Transformer Insulation Materials

Transformer bobbin: Phenolic material
Chang Chun T375J / Sumitomo PM-9820
Triple-insulated wire: TOTOKU TIW-2 / Furukawa TEX-E
Insulating tape: 3M 1350F-1 / YAHUA CT, PZ series
Insulating varnish: ELANTAS 468-2FC / WP-2952F-2G

Components & Cable Materials

Optocouplers: EL1019 / LTV-1019 / OR1019 / CT1019
Fuses: LANSON / WALTER
Safety capacitors: FARATRONIC X2; Y1 / Y2 safety capacitors
Output cable styles: 2464 / 2468 / 1185
Heat-shrink tubing: RSFR-H / SALIPT series

Components and materials are supplied according to the certified configuration of each model.
